IntellICAD 12

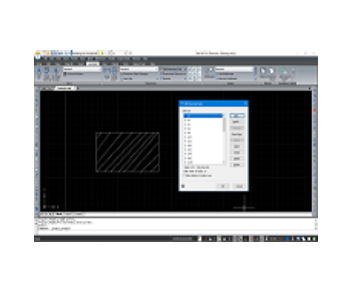

2D Drafting
Many file formats
PDF Import/Export
User Interface

Both classic menu style and modern ribbon style interfaces are available

DWG & DXF Versions

All dwg and dxf versions from very old R2.2 to latest 2023 are supported.

Image/PDF Printing

Apart from local printers, drawing can be printed to Image and PDF formats using .pc3 printers

Annotative Scales

Annotative scales are supported in both model space and paper space to maintain differnt text heights


Create and edit blocks including Attributes


Insert external drawings into current drawing as XREF through XREF manager.


JTS IntelliCAD supports DWG, PDF, dWF & DGN underlays into current drawing.


JTS IntelliCAD supports Object Linking & Embedding (OLE) for various types like xls, doc, pdf etc.

MTEXT Editor

Most powerful MTEXT editor with several options with on screen editing option.

Arc Aligned Text

Create text along arcs either inside or outside with multiple adjustments

Filed Dialog

Using field dialog all drawing fields can be editing similar to other CAD.

Point Clouds

Import point cloud data directly to JTS IntelliCAD with one click. Formats supported are .rcp & .rcs

Multiple Languages

JTS IntelliCAD supports 18 International languages, simply type UILANG and set the desired value

Custom Programs

Use existing LISP programs directly in JTS IntelliCAD, or develop your own programs using our API toolkit

Express Tools

Express tools menu and tab available for blocks, text, dimensions, layout, entity data and other tools.

JTS IntelliCAD Explorer

Powerful explore to manage styles, layers, colors, blocks etc. in built into the software.

Dimension Styles

Create and manage various dimension styles to control a set of dimension properties from one place.

Text Styles

Create and manage various text styles inside the drawing from format menu to manage properties globally.

Print Styles

Define new print styles interactively inside JTS IntelliCAD. It supports .ctb & .stb files supported

Point Styles

Several point styles are predefined in JTS IntelliCAD to apply a particular style to points inside the drawing.

Line Types

Many predefined line types are available, add your line types in .lin files of install directory

Hatch Types

Many predefined hatch pattensrs available for both ISO and ANSI standards, add your own shapes in .pat files of install directory

Layers Manager

Very user-friendly layers manager to control, display, colors, plot settings etc. JTS IntelliCAD supports unlimited number of layers.

3D Modeling

View wireframe or ACIS 3D Solids. Create new 3D shapes using various wireframe modeling commands for primitives and swept features.

JTS IntelliCAD intellicad
Easy, Fast, Complete

Professional CAD

JTS IntelliCAD is a professional grade 2D drafting and 3D modeling CAD software meant for Engineers, Architects and other Technology Consultants.

  • Best for 2D Drafting
  • Built with Latest IntelliCAD 12 Technology
  • Easy to learn and use
  • Free e-mail Technical Support
